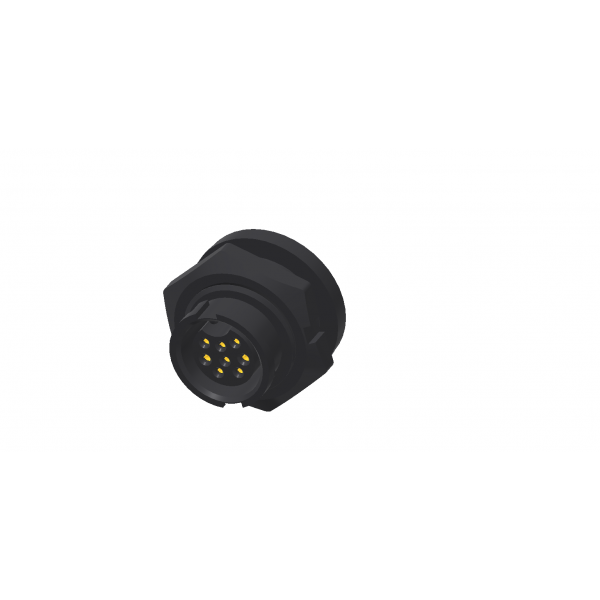

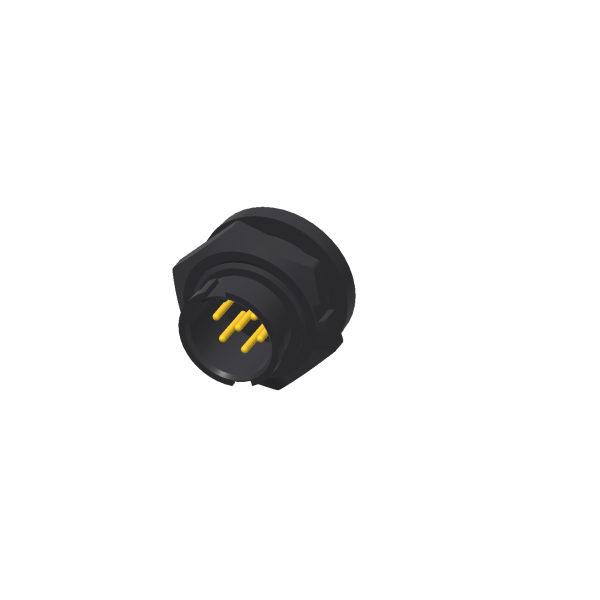

Circular B Size Panel
Circular Connector
High performance, circular connectors
1. A simple, yet highly reliable design for compact, high density applications
2. Extremely easy mating/unmating operations* IP67 products are also available as an option.
Specifications Standard Value
- Description : Penal Mount, Molded With Cable
- Current Ration : Mini(A),Stand(B),Middle(C),Large(D)
- (A) 2A : 4~6Pin, 5A : 2~3Pin
- (B) 2A : 10~12Pin, 5A : 2~8Pin, 10A : 2~4Pin, 5A+2A : 8Pin, 10A+5A : 6Pin
- (C) 2A : 18Pin, 5A : 7-14Pin, 10A : 4~6Pin, 20A : 3Pin, 5A+2A : 12~14Pin, 10A+5A : 6Pin
-
(D) 2A : 20~25Pin, 5A : 18Pin, 20A : 2~7Pin
- Temperature Range Cable : -25℃+ 90℃(PU) , -20℃+ 80℃(PVC)
- Temperature Range Connector Body : -40℃+ 105℃
- Waterproof Rating : IP66, IP67, IP68
