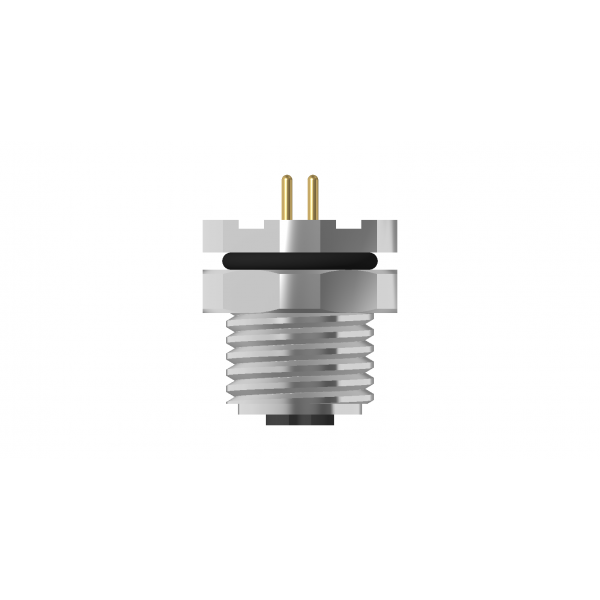

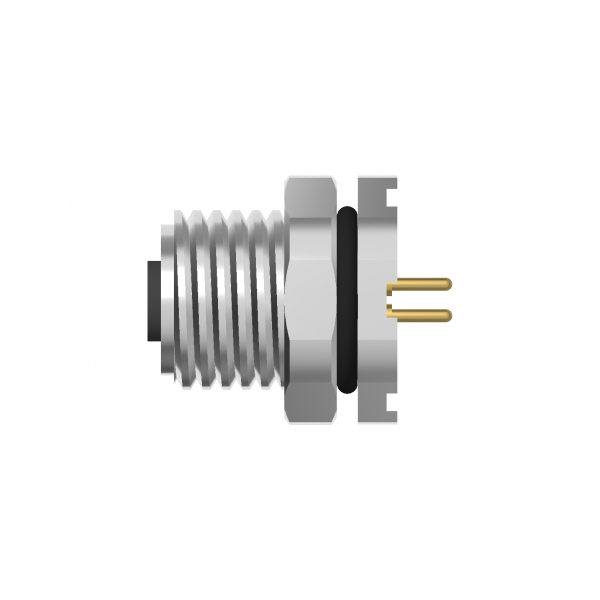

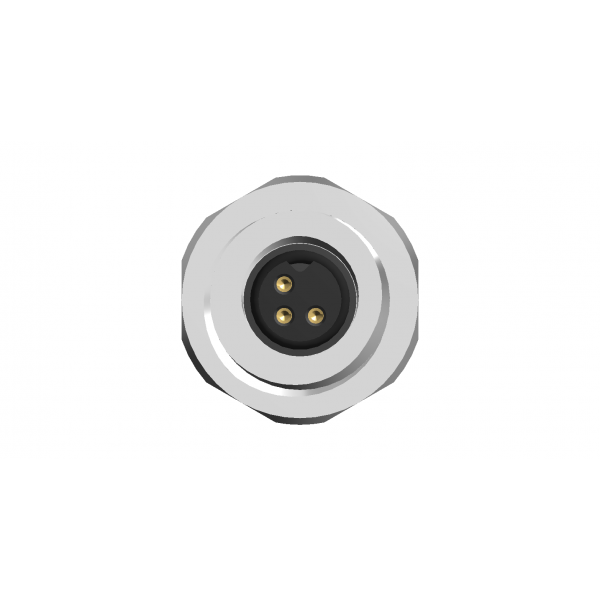

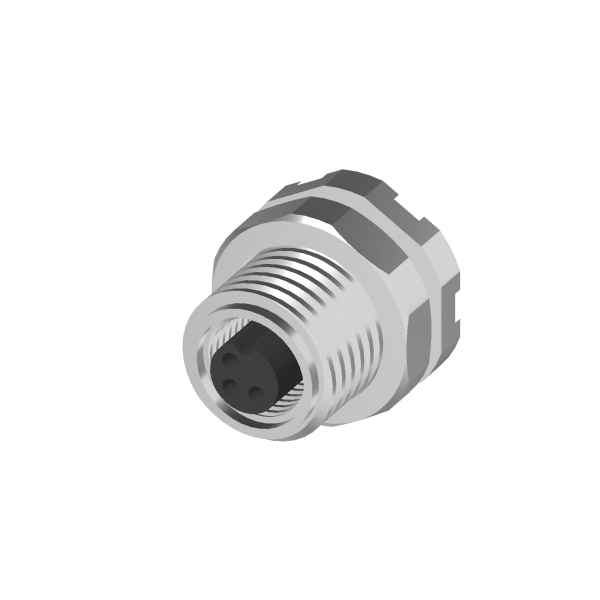

    M5 Panel
    SENSOR M5 CONNECTOR

    M5A03-S05F-LD0-F0

    For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M5 for all common fieldbuses and networks.
    Download
    Send request
    Detail

    Description

    Connector

    M5

    Current Rating

    1A

    Voltage Rating

    60V

    Shell Material

    Brass

    Contact Body

    Nylon+GF

    Contacts

    Copper Alloy

    Field Installable

    PCB Type

    Insulation Resistance

    ≧ 100mΩ

    Contact Resistance

    ≦ 10mΩ

    3D
