M16 Panel

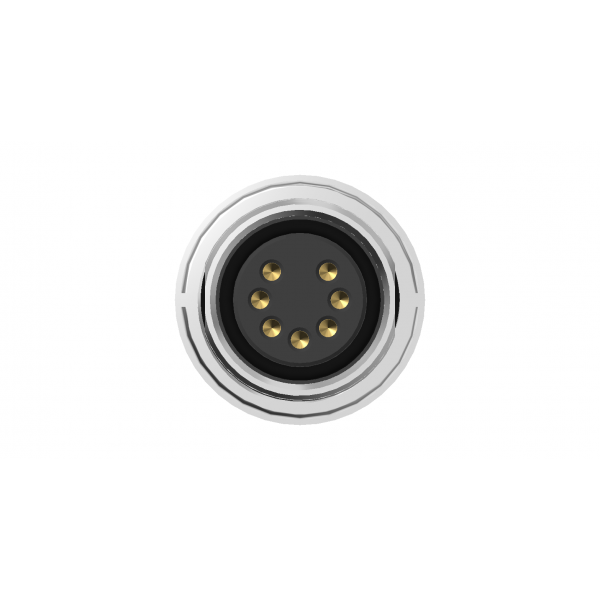

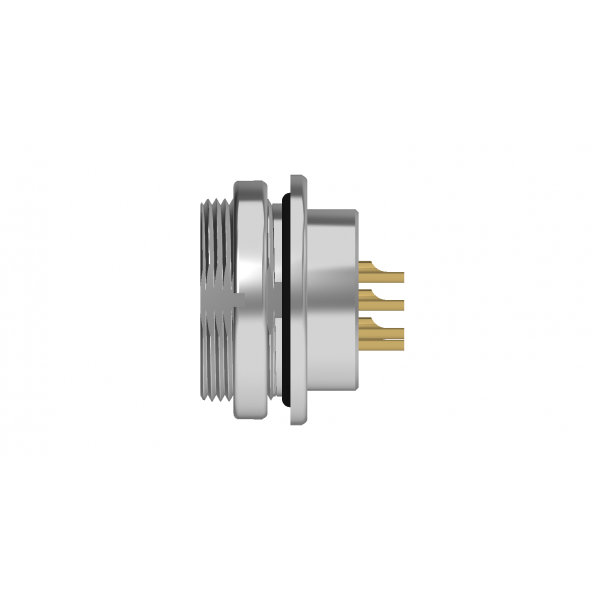

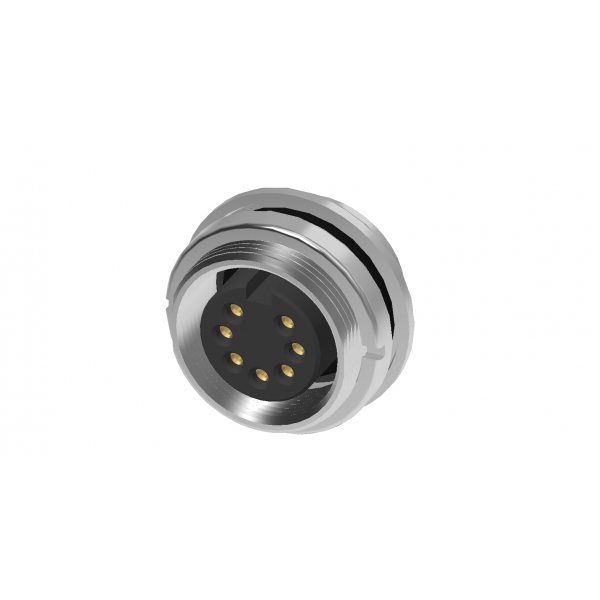

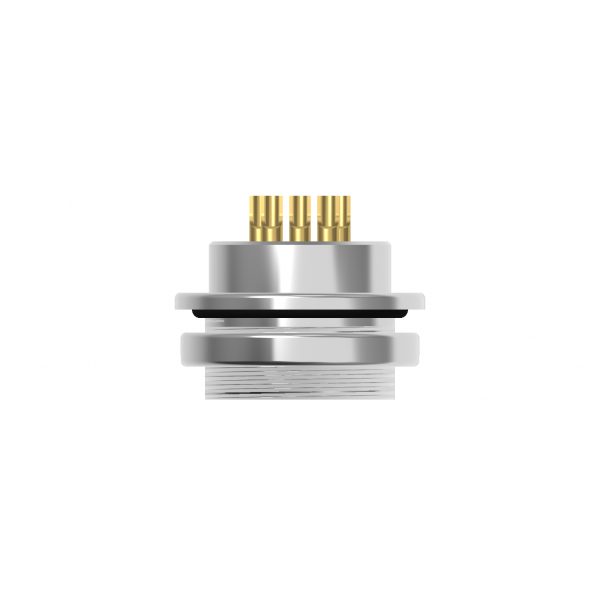

M16 CONNECTOR

M16B7-S18F-LS0-F0

Sensor connectors with M16 locking for factory automation, process control, industrial instrumentation, and commercial electronics. Connectors have industry-standard and have "Hexagon" locking sleeves for hand-tightening or torquing of connections.
Detail

Description

 Connector

M16



 Current Rating

5A

Voltage Rating

60V

 Shell Material

Brass



Contact Body

Nylon+GF



 ContactS

Copper Alloy



 Field Installable

Solder Type



Insulation Resistance

≧ 100mΩ



 Contact Resistance

≦ 10mΩ
