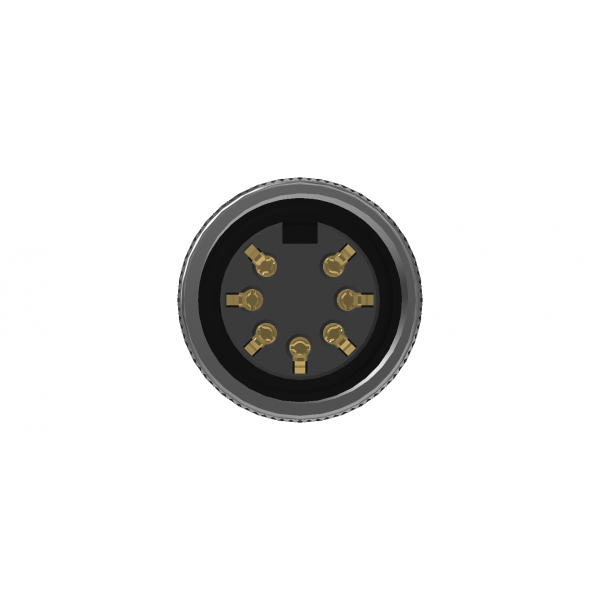

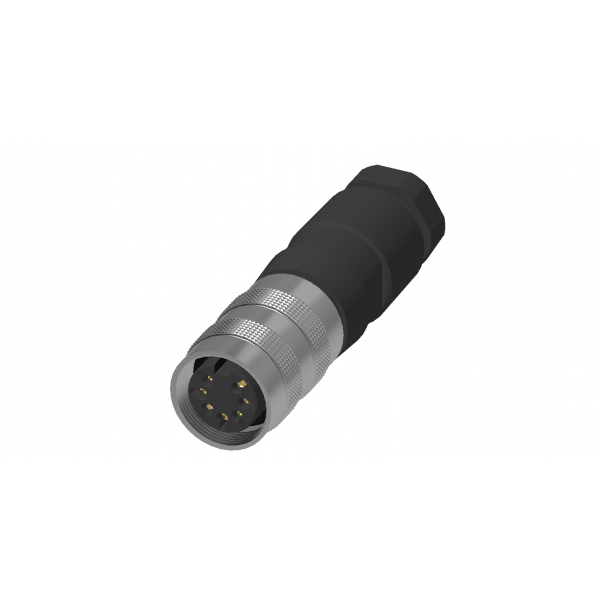

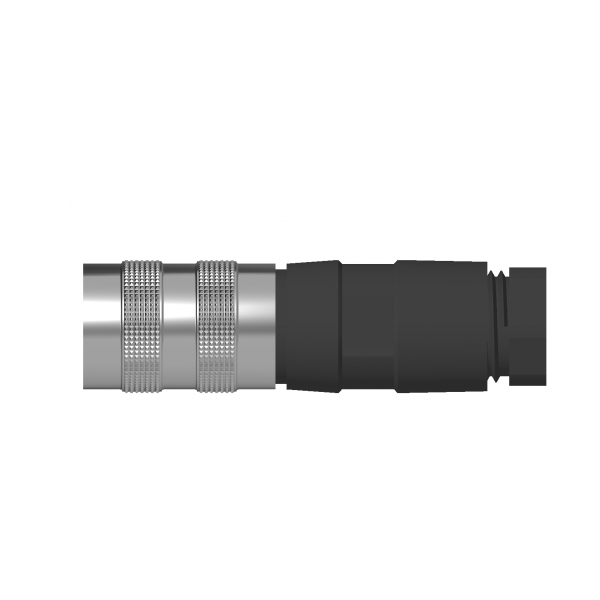

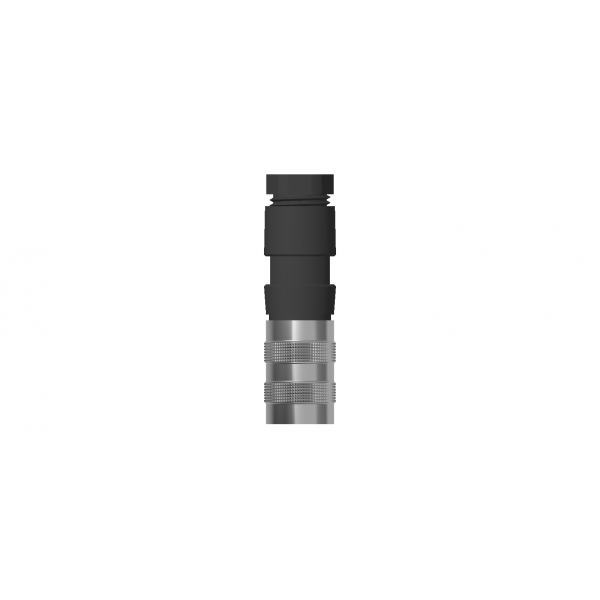

M16 Field Attachable
M16 CONNECTOR

M16B7-SASH-LS0-F0

Sensor connectors with M16 locking for factory automation, process control, industrial instrumentation, and commercial electronics. Connectors have industry-standard and have "Hexagon" locking sleeves for hand-tightening or torquing of connections.
Detail

Description

 Connector

M16



 Current Rating

5A

Voltage Rating

60V

 Screw Nut

Brass



Shell Material

Nylon+GF



 Contacts

Copper Alloy



 Field Installable

Solder Type



Insulation Resistance

≧ 100mΩ



 Contact Resistance

≦ 10mΩ
