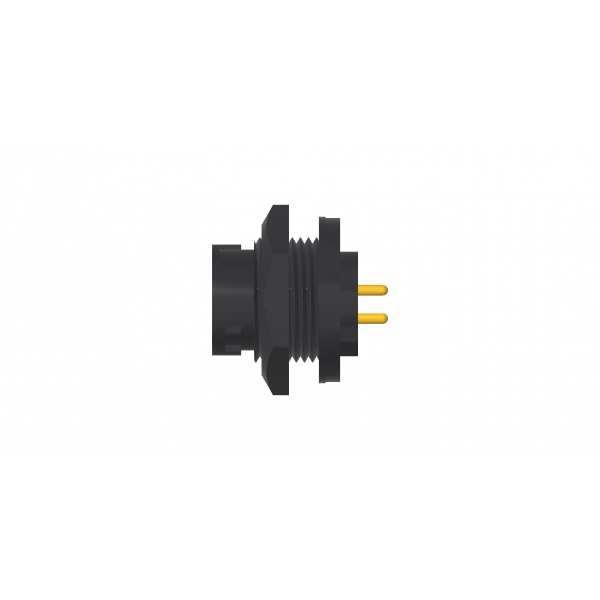

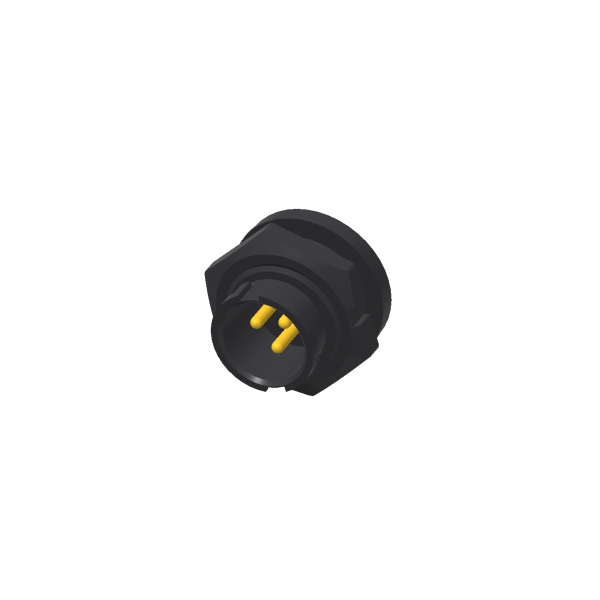

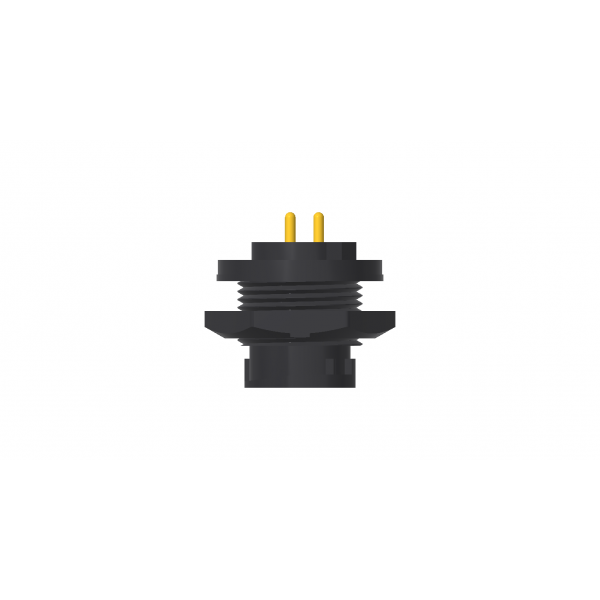

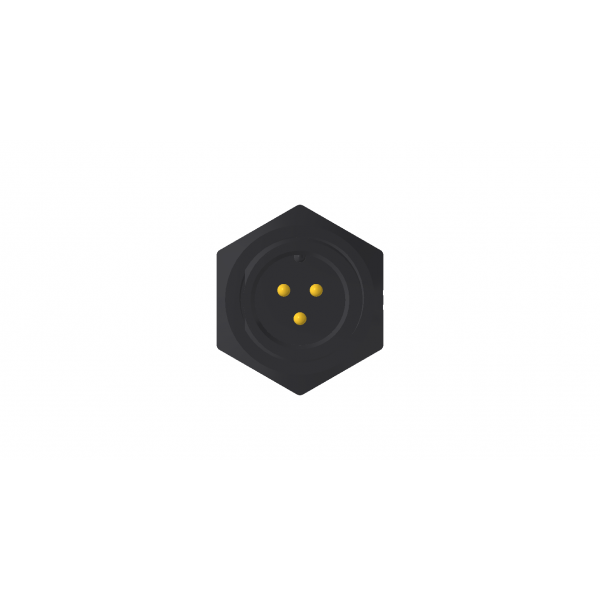

Circular B Size Panel
Circular Connector

CBB03-MMPF-LD0-F0

Circular series, a compact connector system has been developed, combining power supply and data transmission in one single connector. Depending on the application, four sizes, A , B, C and D are available. While the number of pins and the permitted voltages vary depending on the size
Sockets are available in various housing variants for front- and back panel mounting and the installation heights vary on the outside or the inside of the housing.Thus, decentralized wiring chains can be realized with and without Daisy Chain topology with a cost saving one-cable solution.
Detail

Description

 Connector

Circular



 Connector Size

Standard Size

 Current Rating

10A

Mating Type

Lock Type



Shell Material

Nylon+GF



 Contacts

Copper Alloy



 Field Installable

PCB Type



Insulation Resistance

≧ 100mΩ



 Contact Resistance

≦ 10mΩ
