Description
Connector
M12 S-Code
Current Rating
12A
Voltage Rating
630V
Contact Body
Nylon + GF
ContactS
Copper Alloy
O-Ring
Silicon
Field Installable
Screw Type
Insulation Resistance
≧ 100mΩ
Contact Resistance
≦ 10mΩ

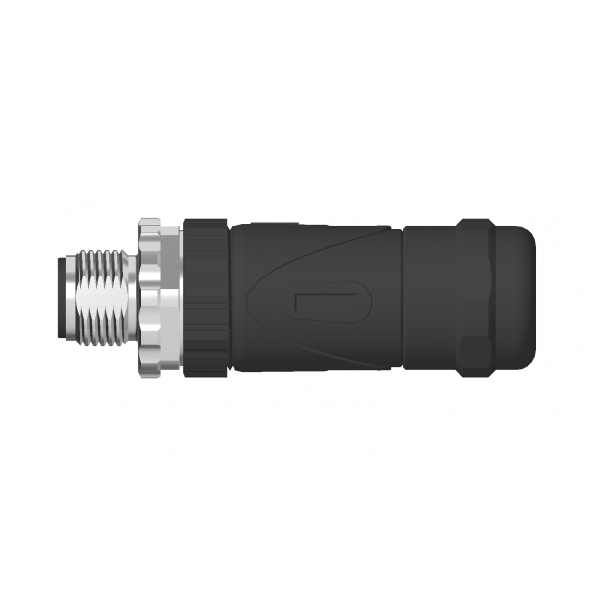

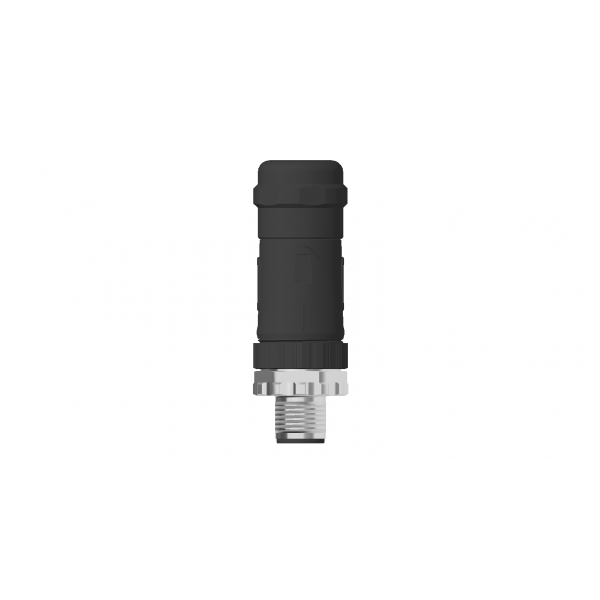

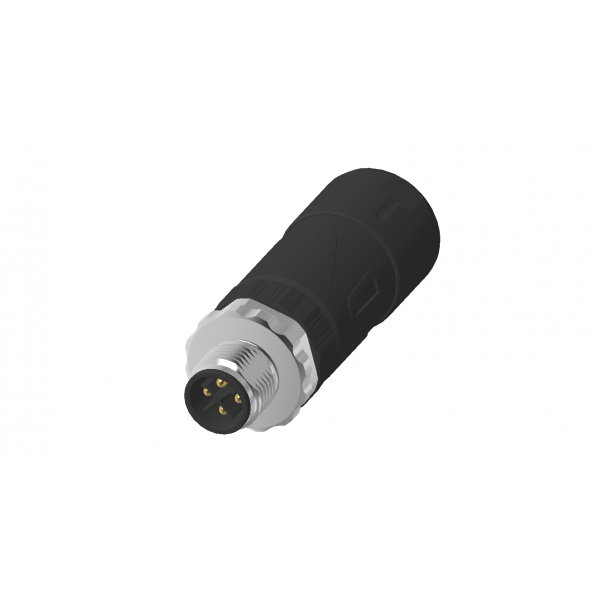

M12 Field Attachable
M12 CONNECTOR
12S04-PASH-LT0-K0
For fast and reliable data communication in industrial and infrastructure applications, we offer shielded circular connectors in sizes M12 for all common fieldbuses and networks.
